Products

Complete range of types, superior performance

Product Range

The company's product range covers a wide range of three-phase asynchronous motor series, including standard, high-efficiency energy-saving, explosion-proof, variable frequency speed control, etc., which can meet the diverse needs of different industries and application scenarios. Whether it is mechanical equipment drive in industrial production or power requirements in special environments such as mines, oil fields, and chemical plants, the company can provide suitable motor products.

The company specializes in the production of various types of general-purpose motors, high-voltage motors, explosion-proof motors, and compressor-specific motors, with an annual production capacity of 7 million kilowatts. Its products are widely used in the petroleum, coal, chemical, metallurgy, and power industries.

LOGO
1
2
3
Our Innovations

Industry Focused Products!

Special motor for compressors

1

Model: S5AC 160~280
Installation method: B3, B35
Housing type: Fully enclosed self-ventilated
Structure: Three-phase asynchronous motor

Explosion-proof low-voltage motor

5

Frame size 63–355
Rated power 0.75 kW–315 kW
Rated voltage 380 V, 660 V, 1140 V, 380/660 V, 660/1140 V
Protection rating IP55
Cooling method IC411
Ambient temperature -15°C to 35°C (underground coal mines) or 40°C (factories);
Dust group IIA, IIB
Temperature class T1 to T4

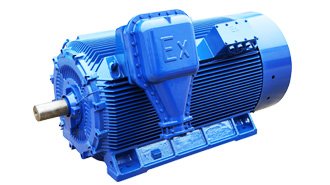

Explosion-proof high-voltage motor

2

Frame size 63–355
Rated power 0.75 kW–315 kW
Rated voltage 380 V, 660 V, 1140 V, 380/660 V, 660/1140 V
Protection rating IP55
Cooling method IC411
Ambient temperature -15°C to 35°C (underground coal mines) or 40°C (factories);
Dust group IIA, IIB
Temperature class T1 to T4

Ordinary low-voltage motor

4

Model: YE3 80~355
Installation method: B3, B5, B35, V1
Housing type: Fully enclosed self-ventilated
Structure: Three-phase asynchronous motor

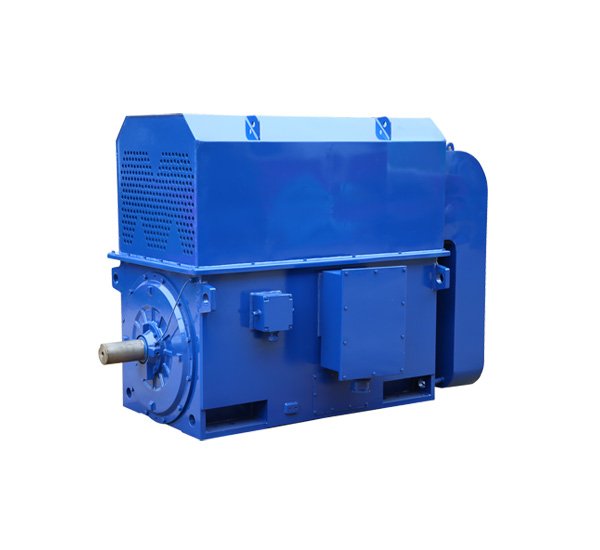

Ordinary high-voltage motor

3

Frame size 355-630 (3kV, 6kV); 400-630 (10kV) Steel plate base
Rated power 160-1600 kW
Rated voltage 3 kV, 6 kV, 10 kV
Protection rating IP55
Cooling method IC611
Ambient temperature -15°C to 40°C

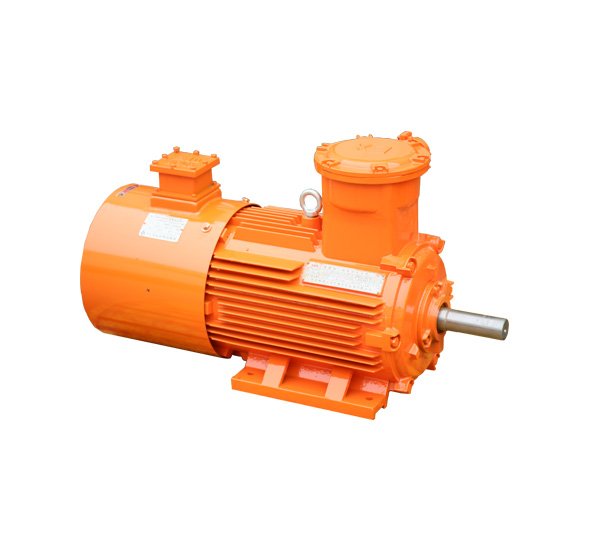

Variable frequency explosion-proof motor

7

Frame size 63~355
Frequency range 2-pole frequency range 3(5)~60Hz, 4-pole and above 3(5)~100Hz, 3(5)~50Hz constant torque speed control, 50~100Hz constant power speed control.
Rated voltage 380V
Protection rating IP54 or IP55
Cooling method IC416
Ambient temperature -15°C to 35°C;
Dust group IIA, IIB class
Temperature class T1 to T4 group
